Rapid and continuous product analysis is crucial for all paper, film and converting processes to ensure consistent high-quality products. Improper moisture control can lead to edge curl and lay flat issues. Coat weight and film thickness directly relate to end product quality. The Guardian-HD accurately measures moisture and coating thickness on-line, providing a zoned web profile across narrow or wide webs for 100% real-time inspection of converting lines.
REDUCE WASTE AND IMPROVE QUALITY
Reduce start-up times and waste by instantly identifying production inefficiencies for quick return on investment. Real-time data eliminates the need for time consuming lab testing and adjustment. Intuitive graphical displays provide critical production insight for rapid identification of out of specification product.
RELIABLE PERFORMANCE

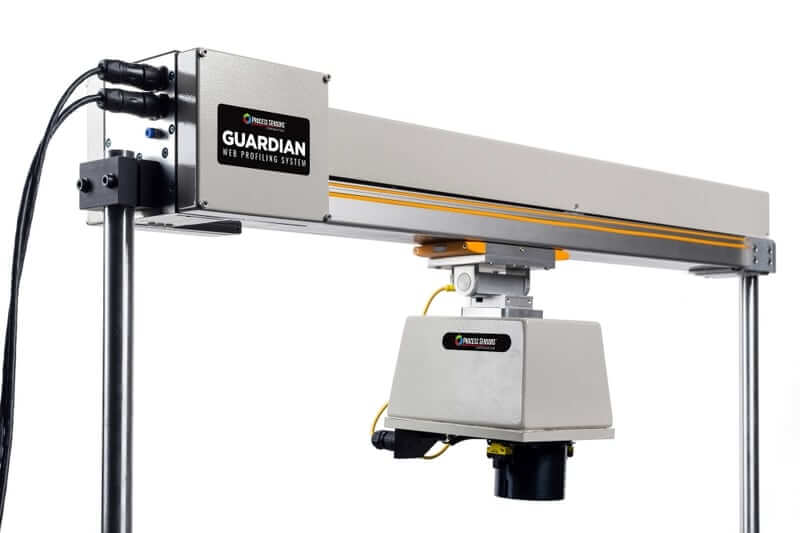

The Guardian-HD Web Profiling Systems are designed for reliable operation in the challenging conditions found in paper and converting applications with a sealed industrial frame and powerful linear actuator. They provide a non-contact, non-destructive on-line measurement and are unaffected by relative humidity, changes in product temperature, ambient light and elevated temperatures. Unlike nuclear and X-ray systems, NIR does not require costly regulation compliance and safety certification.
EASILY INTEGRATED TO LOCAL SYSTEMS
The Guardian HD Web Profiling systems are easily integrated into local plant PLC for closed loop control via 3 4-20 mA analog outputs and optional databus interfaces for standard communication protocols. Optional stack light alarms and output relays ensure that out of specification production is communicated instantly for prompt adjustment and minimal waste.
Choose Your Guardian-HD

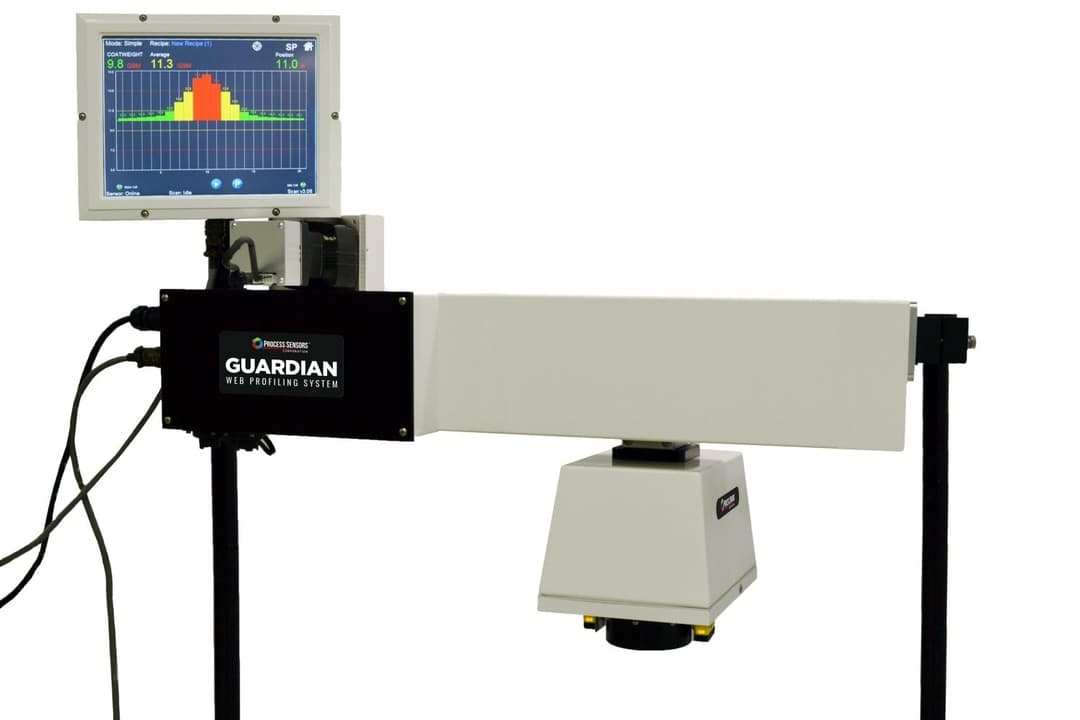

All Guardian-HD systems include an industrial scanning frame, an NIR smart sensor and local easy to read touchscreen display for cross direction web profiling and lane and machine direction measurements.
ELITE WEB PROFILING SYSTEM
Powerful Features and the ability to monitor and control single or multiple guardian-HD systems simultaneously
The Elite Guardian-HD Web Profiling System connects to a local display and a 19” Windows®-based PC at a central console. Larger displays are available for monitoring multiple line profiles at a single central console.
- Proprietary ViewerSuite software pre-installed for advanced roll reporting and raw data logging for full traceability and auditing:
- Complete roll recording including measurement value, date,
time, length, product name, etc. - Web scan average and individual zone measurements
- Automatic sync of roll reports to local network
- Storage of up to 100 product recipe codes
- Up to 100 individual zones across the web
- Designated lane and machine direction trends
ESSENTIAL WEB PROFILING SYSTEM
STANDARD FEATURES FOR SINGLE LINE MONITORING AND CONTROL.
The Essential Guardian-HD Web Profiling System connects to a 12” operator interface for simple profile display and controls.
- Raw data logging capabilities with export to .csv, .xml or .txt
- Storage of up to 100 product recipe codes
- Up to 50 individual zones across the web
- Lane and machine direction measurements
The PSC advantage
Process Sensors’ deep industry knowledge and commitment to our customers’ long-term success ensures you receive the best product for your specific application and full support when you need it during and after installation.
SPECIFICATIONS
Sanning Frame
| Available widths | Custom frame widths available to 6m (20′) |
| Outputs | 3x 4-20mA Selectable sources • Live NIR Value • Scan NIR Average Values • Live Temperature & Scan Temperature Average Value |
| Inputs | • Web Break • Web Length • Cooling Air • Sensor Window Purge |
| Ambient Temperature: | 0-50°C (32-120°F) with air cooling up to 80°C (160°F) |
|
Options
|
Data Bus Interfaces, Simultaneous Temperature measurement, 4X Alarm Relays, Stack Light Alarm |
NIR Measurement
| Moisture Range | Min 0.1%, Max 95% |
| Coatings Range | Min 0.1 GSM, Max 250 GSM |
| Moisture Accuracy | ±0.1% |
| Coatings Accuracy | ±0.1 GSM |
| Repeatability | ±0.1% |
| Product Temperature | 80°C (160°F) |
Elite Web Profiling System
| Profiles | 3 |
| NIR Consituents | Up to three (2 NIR plus product temperature) |
| Recipe Codes | 100 |
| Communication to Frame | Ethernet |
| Power | 90-260VAC |
| Multi-Frame Operation | 19” Screen – Larger Optional |
Essential Web Profiling System
| Profiles | 2 |
| NIR Constituent | Up to two (2 NIR or 1 NIR plus product temperature) |
| Recipe Codes | 100 |
| Communication to Frame | RS485 |
| Power | 24VDC from Frame |
